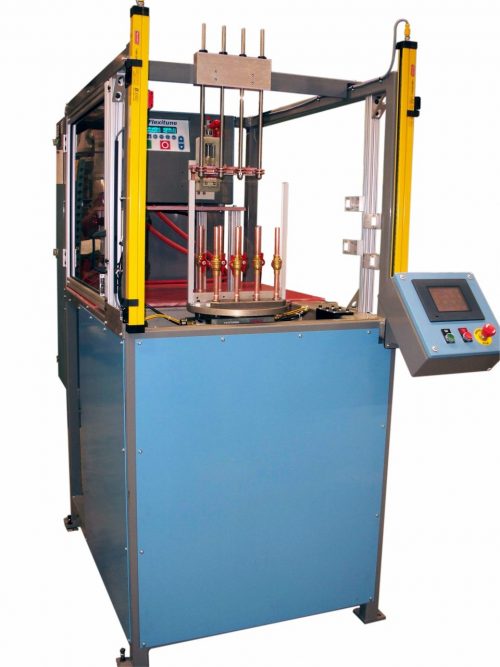

Lift and Rotate Soldering System

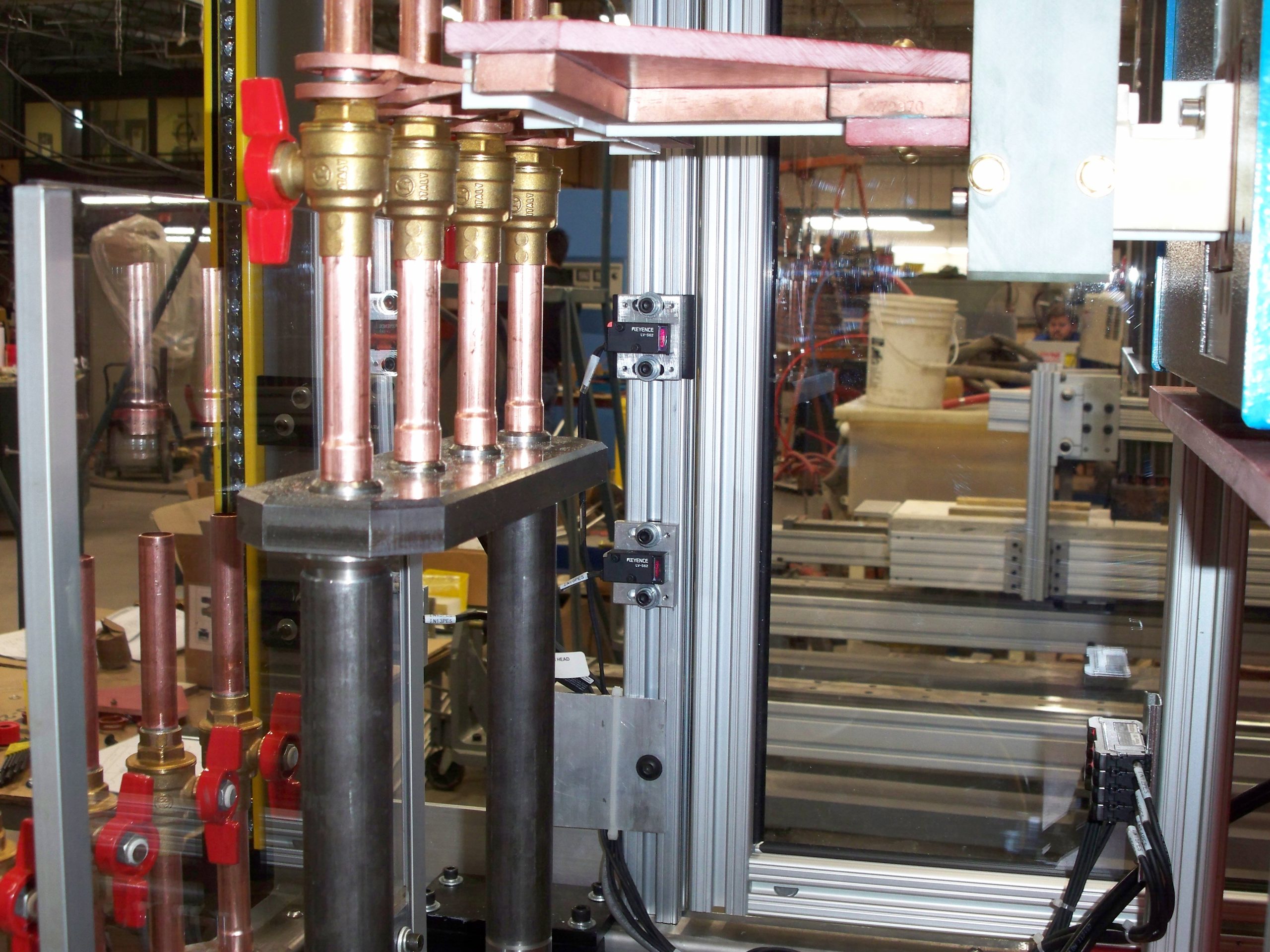

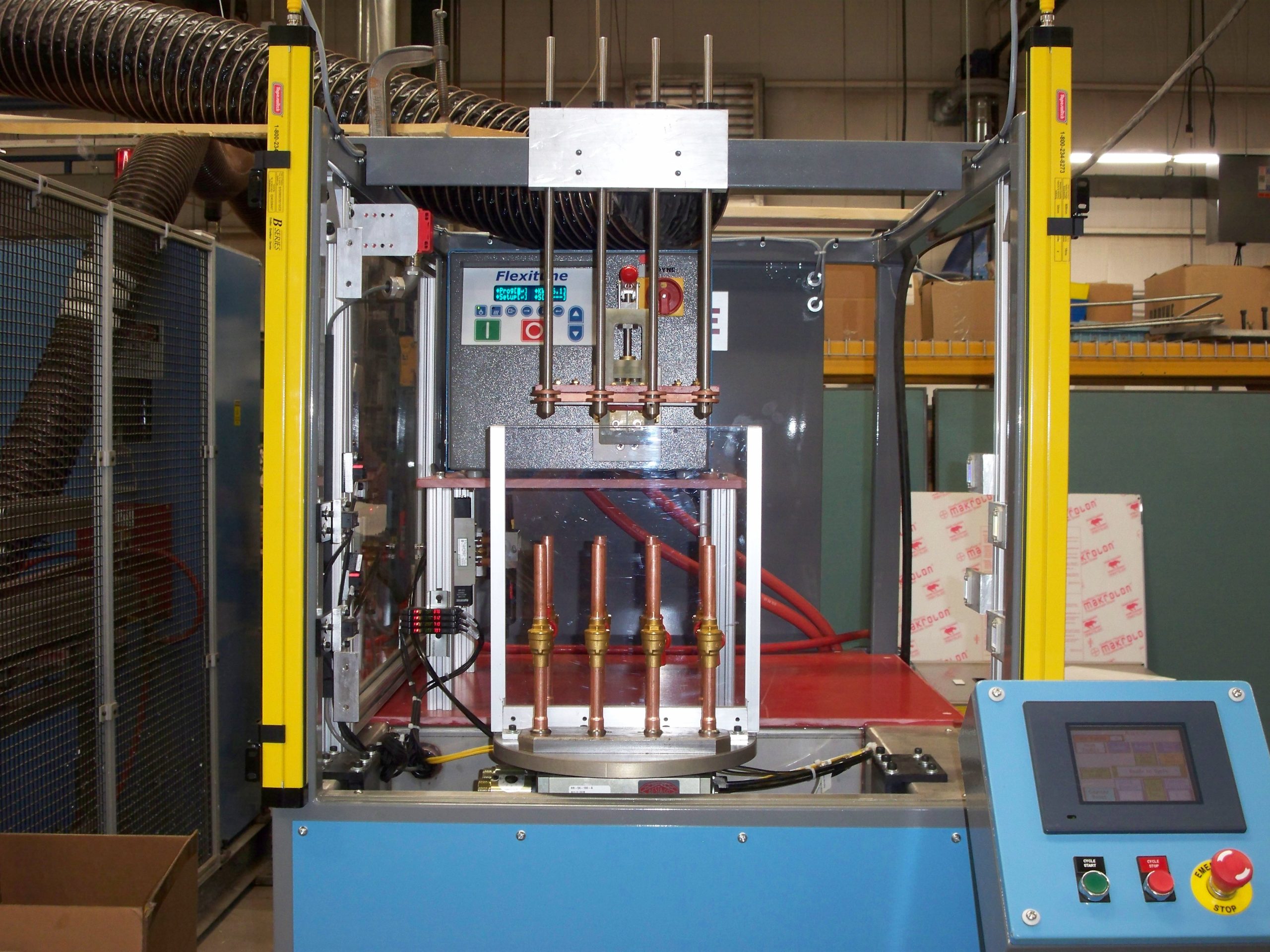

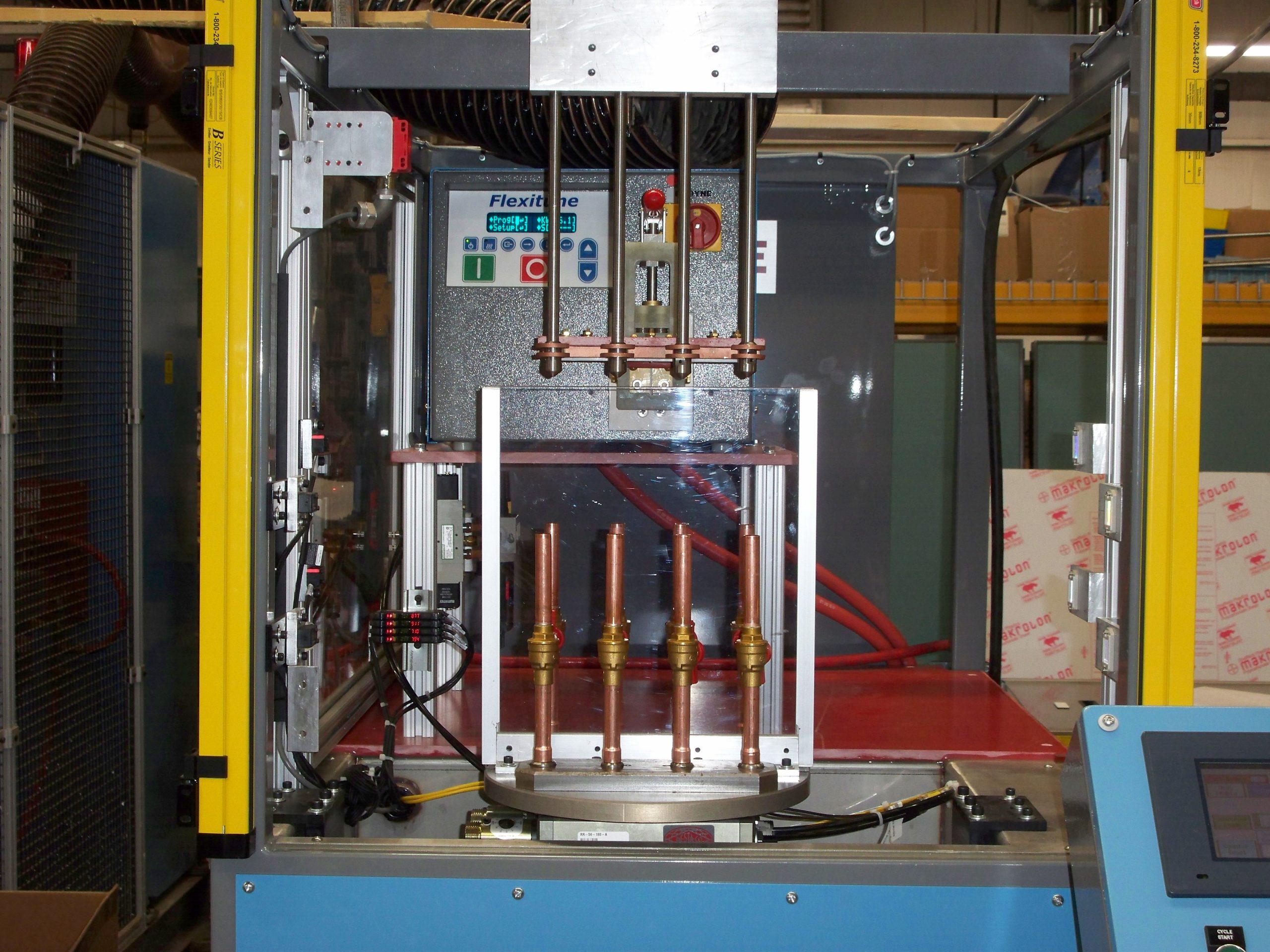

The Radyne Lift and Rotate Brazing System is an ideal way to increase production rates while retaining a compact footprint. The rotating part loader assembly allows a single operator to stage the next batch of parts while the heat cycle is occurring. This reduces operator and machine idle time and increases production rates. The part loader can be customized to fit unique part shapes and sizes. This system is also easily integrated with robotic material handling systems.


Radyne Corporation

211 W Boden St. Milwaukee, WI 53207

  • Phone: (414) 481-8360
  • Toll Free: (800) 236-8360


  • Easy load and unload design
  • Custom Part Fixturing
  • Compatible with robotic, pick n’ place, and other material handling solutions
  • Standard Digital iQ control firmware.

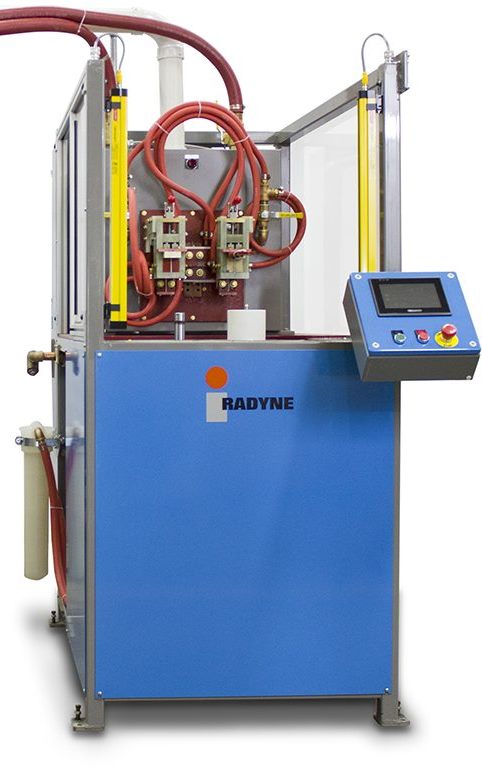

Machine BaseFlexscan 12
ControlsDigital iQ control firmware
Power SupplyVersaPower-Xtreme (model may vary depending on customer requirements)
Dimensions (Inches)77Wx38Dx91H
Maximum Weight Capacity75 lbs per load
