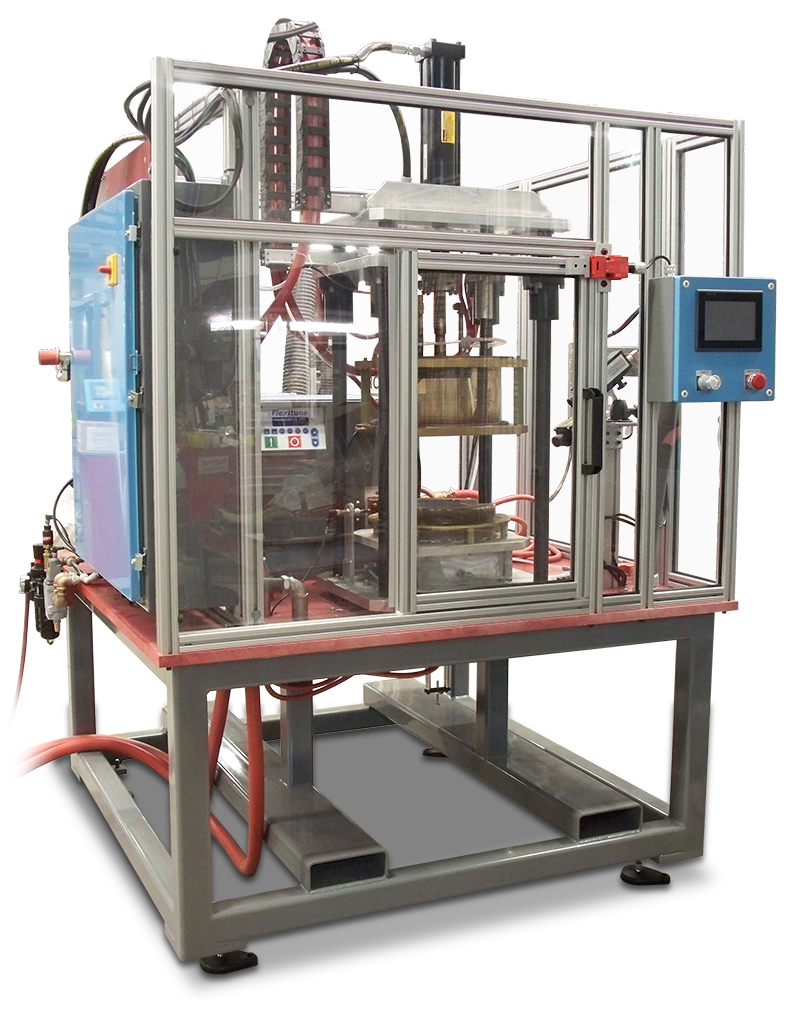

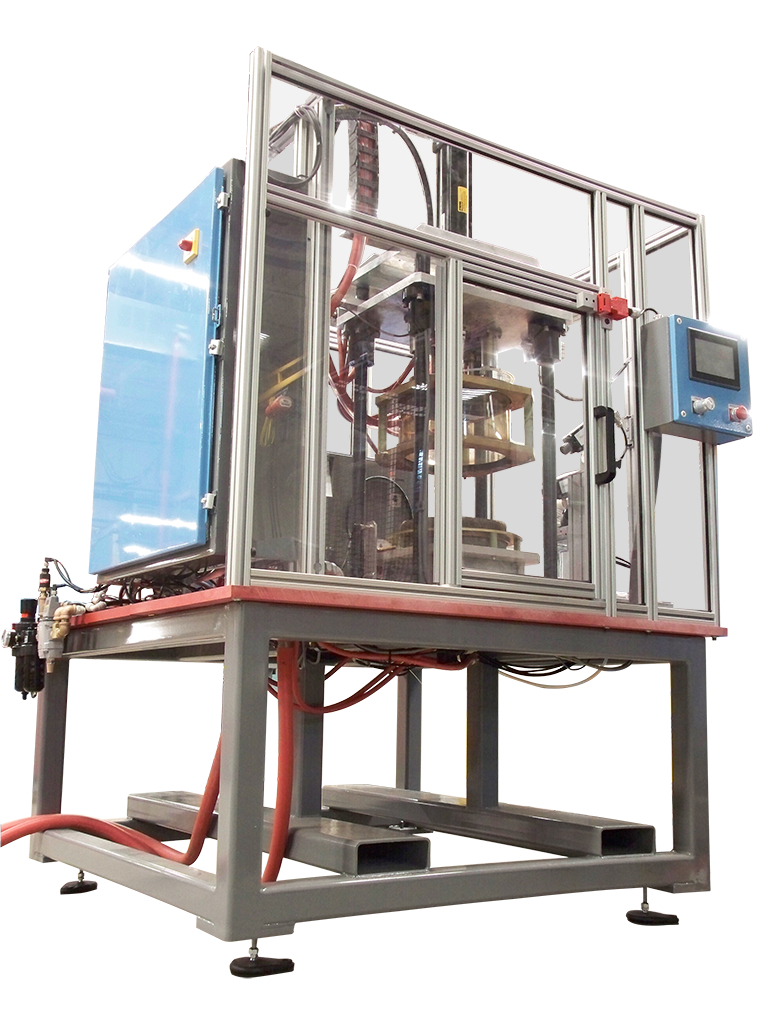

BrazePress™ – Controlled Atmosphere Brazing System

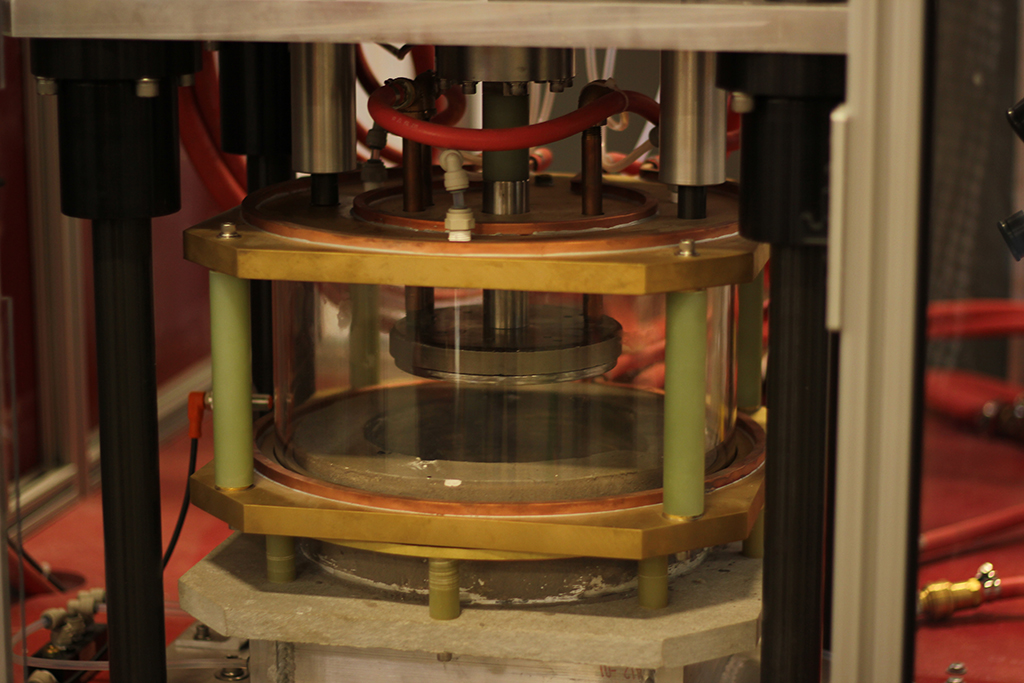

Radyne’s BrazePress™ – Controlled Atmosphere Brazing System delivers unmatched quality, repeatability, throughput, and safety that can not be achieved with flame brazing systems or handheld induction systems. Then BrazePress™ induction brazing system has a built-in controlled atmosphere pneumatic press chamber capable of up to 1100 lb. [498 kg].

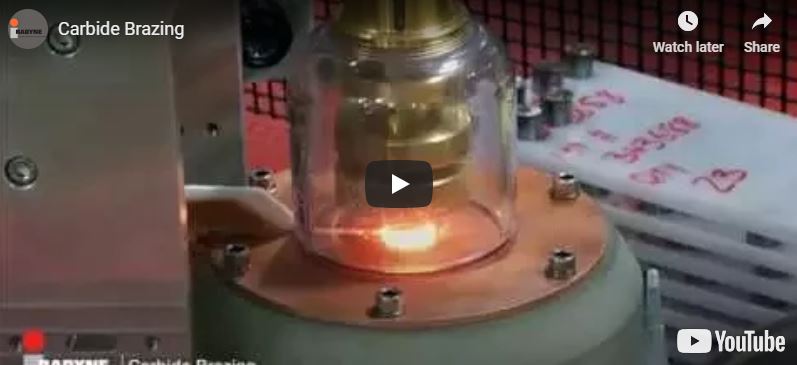

Induction Carbide Brazing, as opposed to batch heating, provides for better quality and higher energy efficiency, as it focuses the energy on the braze joint alone, rather than heating the entire part. Radyne’s patent-pending fluxless induction brazing technology is integrated into systems used by the world’s leading automotive and aerospace suppliers to braze fittings to fuel lines and rails.

Stainless Tube Fitting Brazing Machines from Radyne

The experts at Radyne have patented a system and method for performing induction brazing in an oxygen-free atmosphere. Our brazing system is designed to improve the quality and consistency of brazed joints by preventing oxidation during the heating process.

A compact enclosure system that surrounds the brazing area while induction heating is applied. With our controlled atmosphere brazing system, you’ll have:

• Reduced oxidation and discoloration
• Higher-quality brazed joints
• Less post-braze cleaning
• Lower inert gas consumption compared with large chambers
• Improved process repeatability
• Suitability for automated manufacturing environments
