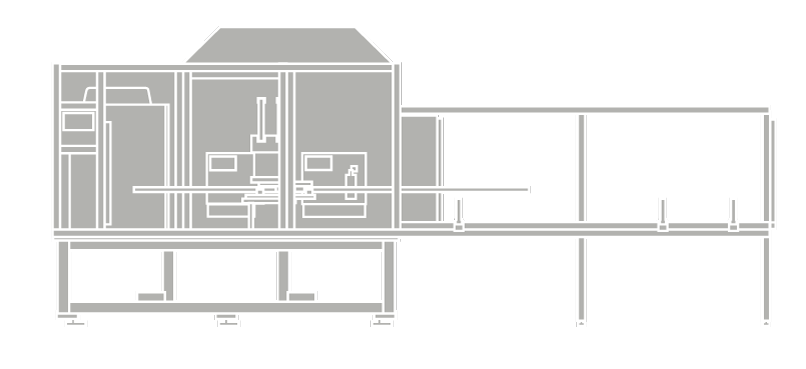

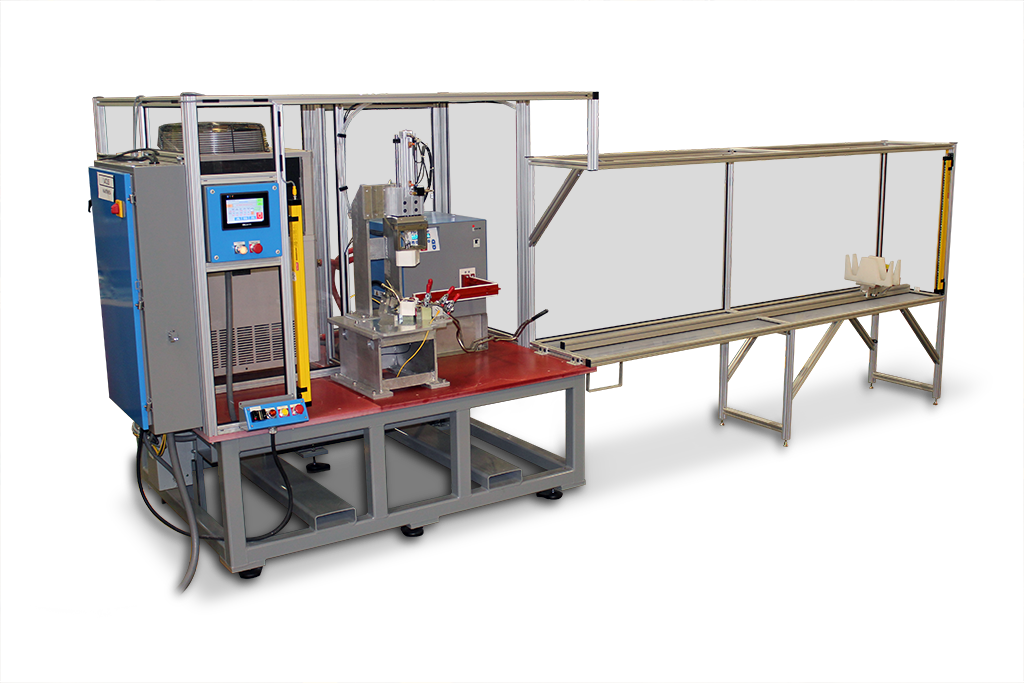

Fluid and Fuel Tube Brazing System

Radyne offers Full-Turnkey, automated and manual operated induction brazing machines for fluid and gas handling applications for industries including Automotive, Aerospace, Petrochemical, Food & Beverage, Pharmaceutical and many others. Radyne Brazing experts leverage our 75 years of induction brazing technology and techniques to design custom specialized tools which enable a wide range of brazing processes.

From Fuel Fillers, High Pressure Fuel Lines and Rails, Brake Lines, Hydraulic Lines, through to Slushy Machine Lines for the Beverage Industry, Radyne delivers customized induction brazing machines tailored to fit into the unique production environments of our clients.

The newest line of stainless brazing systems offer repeatable controlled atmosphere brazing for many fuel, liquid, and gas fluid routing solutions. This stainless steel brazing system features new, innovative non-toxic brazing techniques that deliver solid, low cost braze joints.
REQUEST A QUOTE »

Radyne Corporation

211 W Boden St. Milwaukee, WI 53207

  • Phone: (414) 481-8360
  • Toll Free: (800) 236-8360

Features

  • Fully automatic, semi-automatic part loading options
  • Single or multiple assemblies per heat cycle
  • Low or high power units to handle multi-position configurations
  • Full PLC control and work cell management

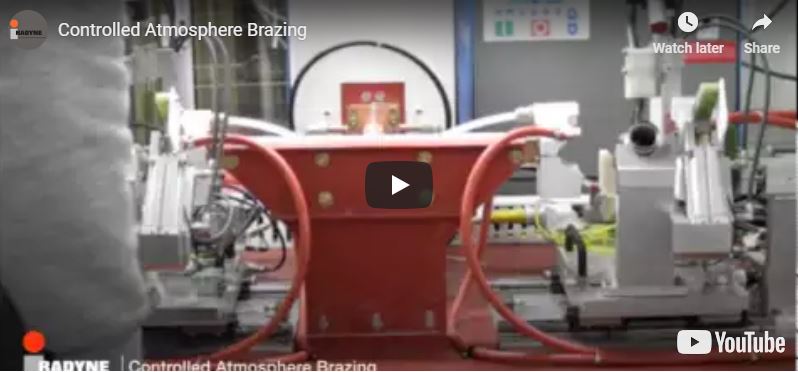

  • Integrated controlled atmosphere

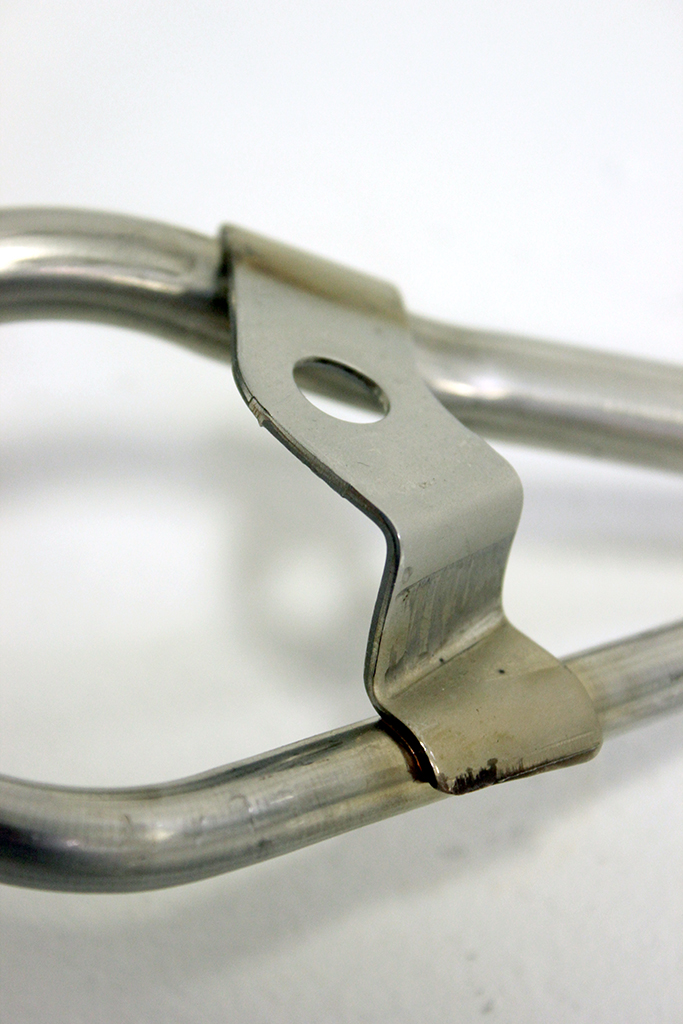

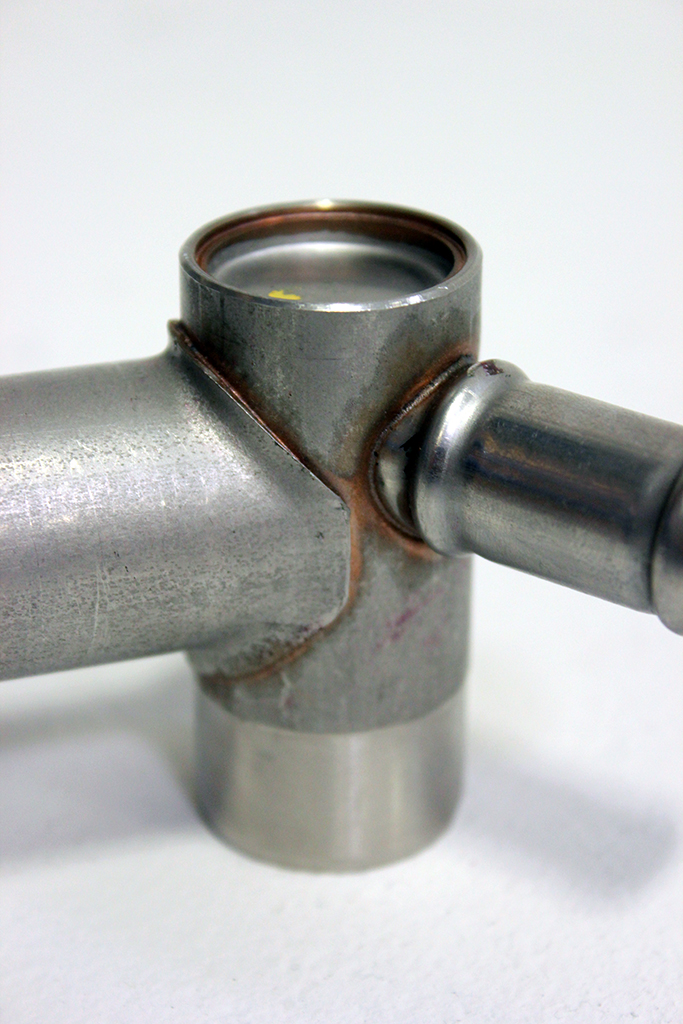

  • Suitable for fuel line tubes-to-brackets and tubes-to-fittings applications

Tech Specs

Single PositionDual PositionQuad Position
AtmosphereNitrogen or ArgonNitrogen or ArgonNitrogen or Argon
Power Supply ConfigurationSingle – Direct Bus
Single – Heat Station
Dual – Direct Bus
Single – Split Heat Stations
Quad – Direct Bus
Dual – Split Heat Stations
Part Rate1 Part Per Heat Cycle2 Parts Per Heat Cycle or 1 Part Per Alternating Cycles4 Parts Per Heat Cycle or 2 Parts Per Alternating Cycles

Accessories

Dual Color Pyrometer 300-1000c Laser Sight

Single Color Pyrometer Infrared 1500-2500
