ScanMaster® 28 Induction Scanner

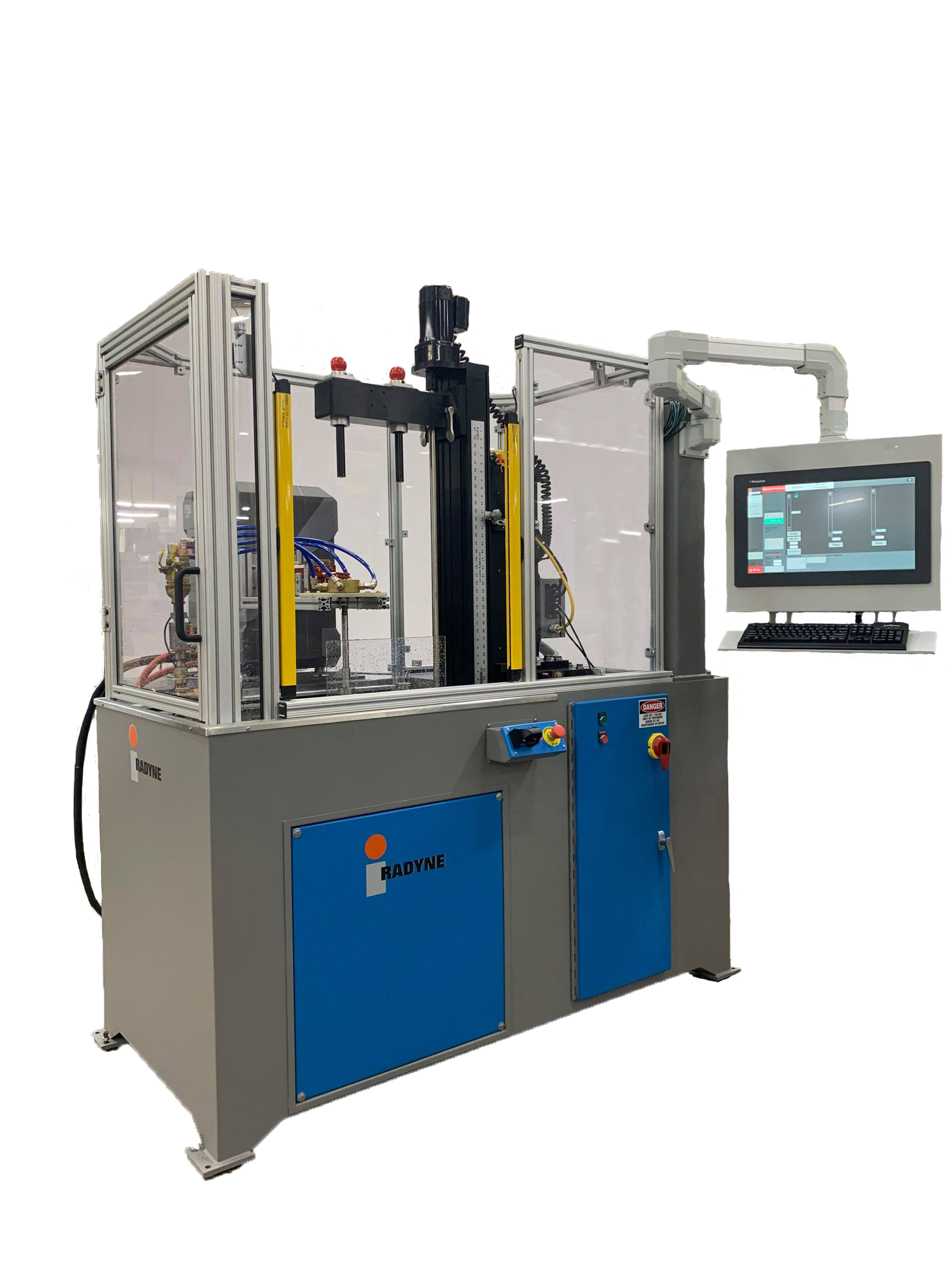

The ScanMaster® 28 induction scanner is designed to accommodate parts up to 28 inches in length. It includes the scanner assembly, a power supply, inductors, standard guarding with safety light curtains, ScanMaster® controls and a configurable water/quench cooling system.
ScanMaster® induction scanner components can be incorporated together or separately to meet specific needs, and can be easily adapted for use with external material handling units, such as a pick-and-place, linear transfer, clamp transfer and more.
Our user friendly control system simultaneously controls scan speeds (0-6 in. [152.4 mm] per second), rotation speeds (0-400 rpm), heat levels, heat times, quench times, quench temperature, time delays, and six additional user custom digital outputs.
Features
- Dual Spindles
- Built-in quench tank
- Movable Upper Center Spindle for quick and easy changeovers
- Self-contained system easily integrated into production line
- Different power ratings and frequency ranges available for application-matched precision hardening
- User-friendly controls simplify set-up, changeover, and diagnostics
- Flexible work piece capacity
- Simple utility connection for fast, low cost installation
- Optional QAS 2000 Monitoring and Alerting System which provides process monitoring and traceability for each part processed
Tech Specs
| ScanMaster® 28 | |
|---|---|
| Scan Length | 28 in. [71 cm] |
| Spindles | Dual Spindles |
| Spindle Spacing | 8 in. [203 mm] |
| Rotation Speed | 0-400 RPM |
| Maximum Payload | 75 lbs. |
| Single Part Diameter | 18 in. [457 mm] |
| Dual Part Diameter | 6 in. [152 mm] |
| Dimensions | 77W x 38D x 91H in. [195W x 97D x 231H cm](121H in. [307 cm] Fully Raised) |
| Operator Interface | Touchscreen Controls Package |
| Quench Tank | 200 gal./50 GPM [757 L/189 LPM] 300 gal./100 GPM [1135 L/378 LPM] |
Accessories
- Quick Disconnect – Quick change tooling for coil mounting
- Robotics and Material Handling Integration, i.e. integrated bowl feeders, rotary tables, step feeders, conveyors, or 6 axis robotic arm
- QAS 2000 Quality Assurance System
- Pyrometer Sensor
- Chillers
- Automatic/Semi-automatic part handling modules
