ScanMaster® 63 Induction Scanner

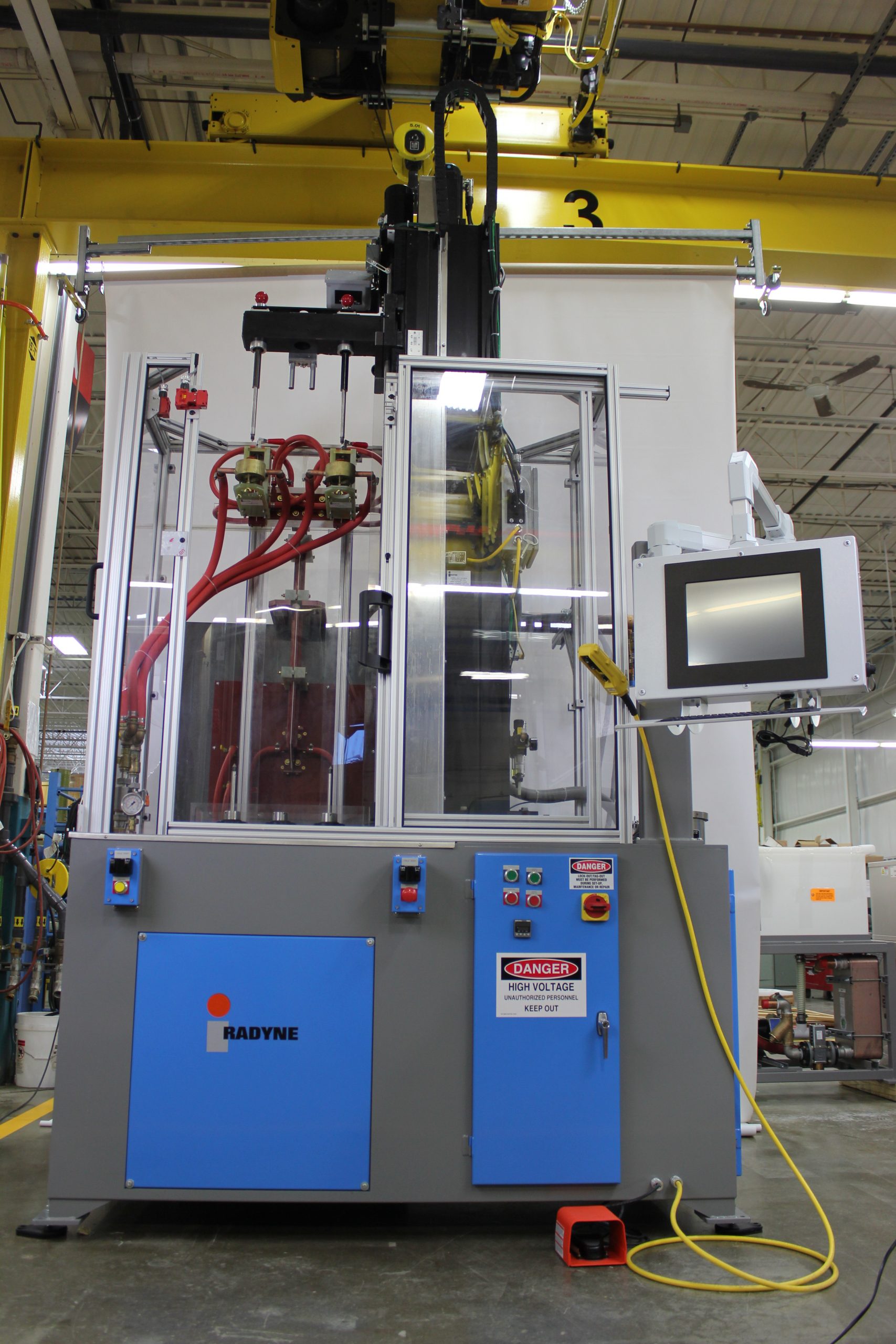

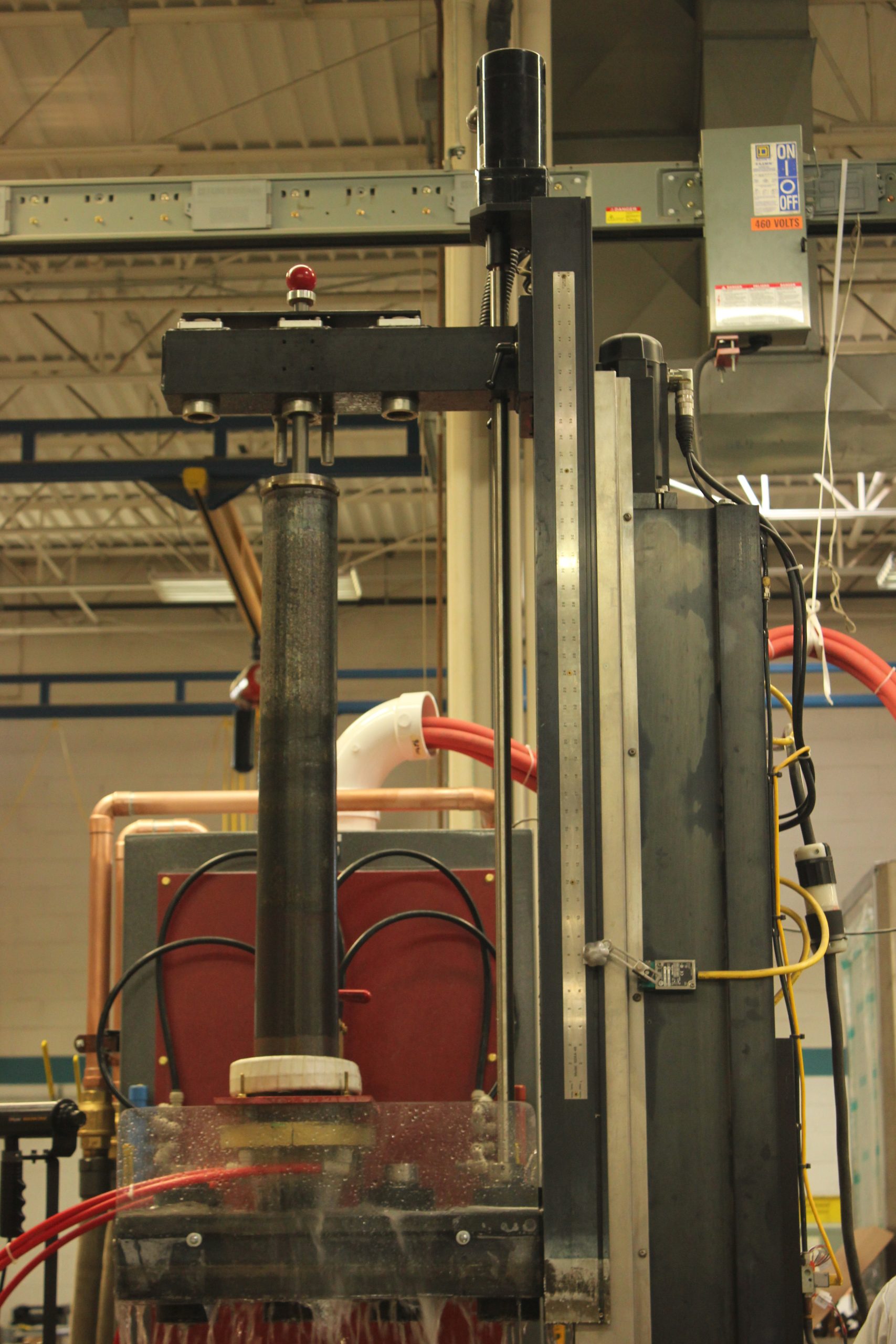

The ScanMaster® 63 induction scanner is designed to accommodate parts up to 63 inches in length. It includes the scanner assembly, a power supply, inductors, standard guarding with safety light curtains, ScanMaster® controls, and a configurable water/quench cooling system.

ScanMaster® induction scanner components can be incorporated together or separately to meet specific needs and can be easily adapted for use with external material handling units, such as a pick-and-place, linear transfer, clamp transfer, and more.

Our user-friendly control system simultaneously controls scan speeds (0-6 in. [152.4 mm] per second), rotation speeds (0-175 rpm), heat levels, heat times, quench times, quench temperature, time delays, and six additional user custom digital outputs.

REQUEST A QUOTE »

Radyne Corporation

211 W Boden St. Milwaukee, WI 53207

  • Phone: (414) 481-8360
  • Toll Free: (800) 236-8360

Features

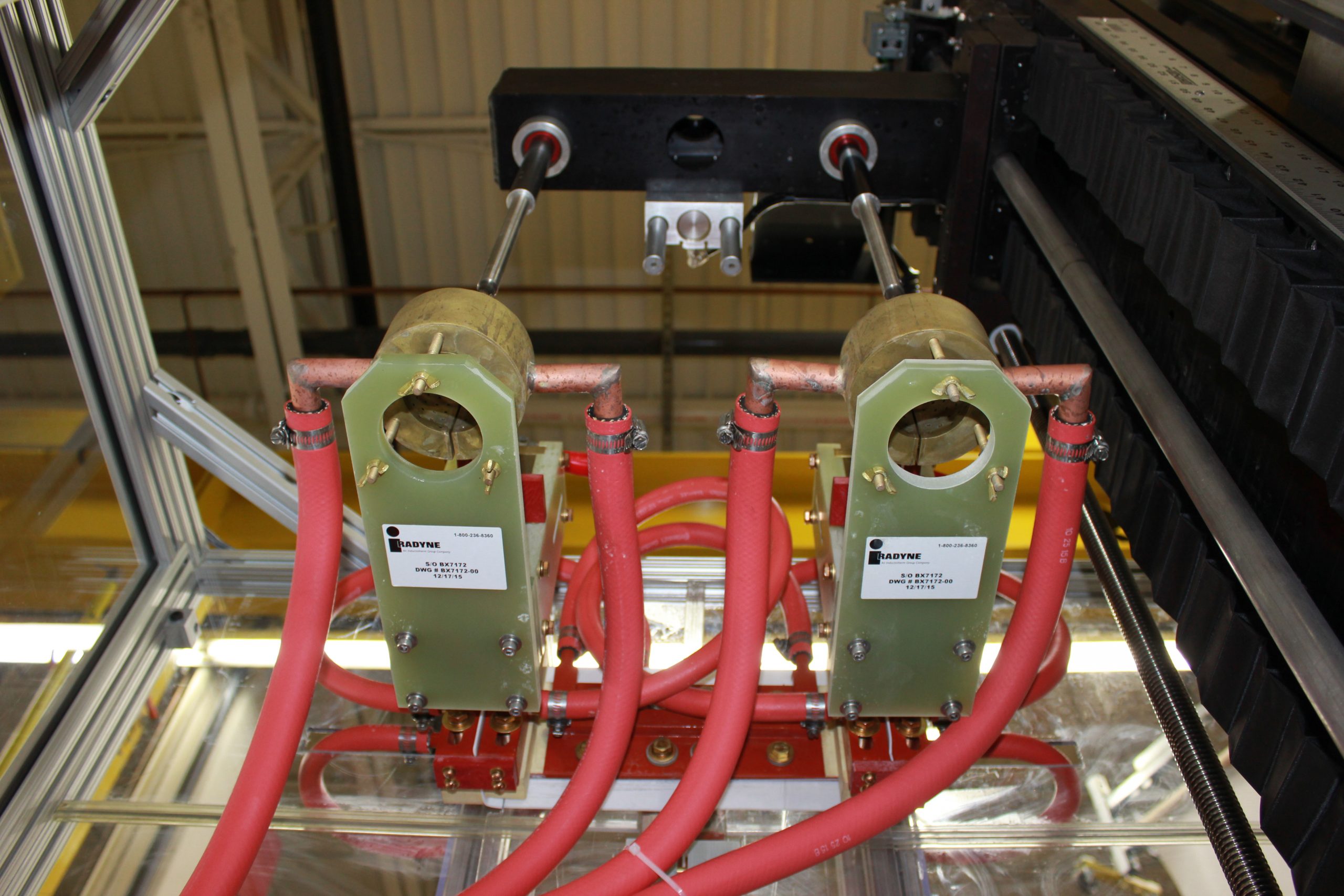

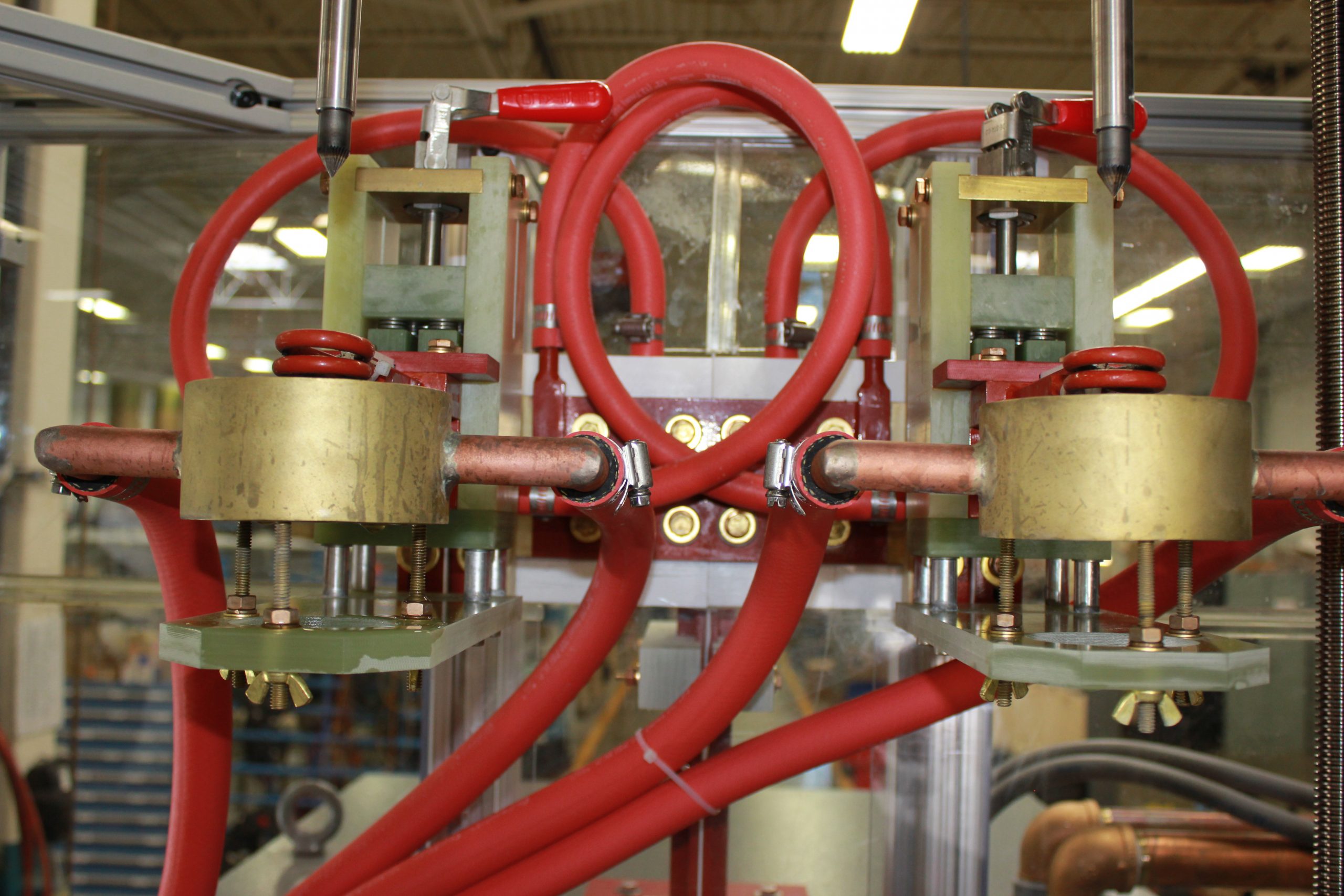

  • Dual or Triple Spindles
  • Built-in quench tank
  • Movable Upper Center Spindle for quick and easy changeovers
  • The self-contained system is easily integrated into your work cell
  • Different power ratings and frequency ranges are available for application-matched precision hardening
  • User-friendly controls simplify set-up, changeover, and diagnostics
  • Flexible workpiece capacity
  • Simple utility connection for fast, low-cost installation
  • Optional QAS 2000 Monitoring and Alerting System which provides process monitoring and traceability for each part processed

Tech Specs

ScanMaster® 63
Scan Length63 in. [160 cm]
SpindlesDual or Triple Spindle
Spindle Spacing6 in. [152 mm]
Rotation Speed0-175 RPM
Maximum Payload500 lbs.
Single Part Diameter20 in. [508 mm]
Dual Part Diameter8 in. [203 mm]
Dimensions82W x 76D x 143H in. [208W x 193D x 363H cm] (170H in. [431 cm] Fully Raised)
Operator InterfaceTouchscreen Controls Package
Quench Tank200 gal./50 GPM [757 L/189 LPM] 300 gal./100 GPM [1135 L/378 LPM]
Quench @ 50% Duty Cycle200 kW/400 kW

Accessories

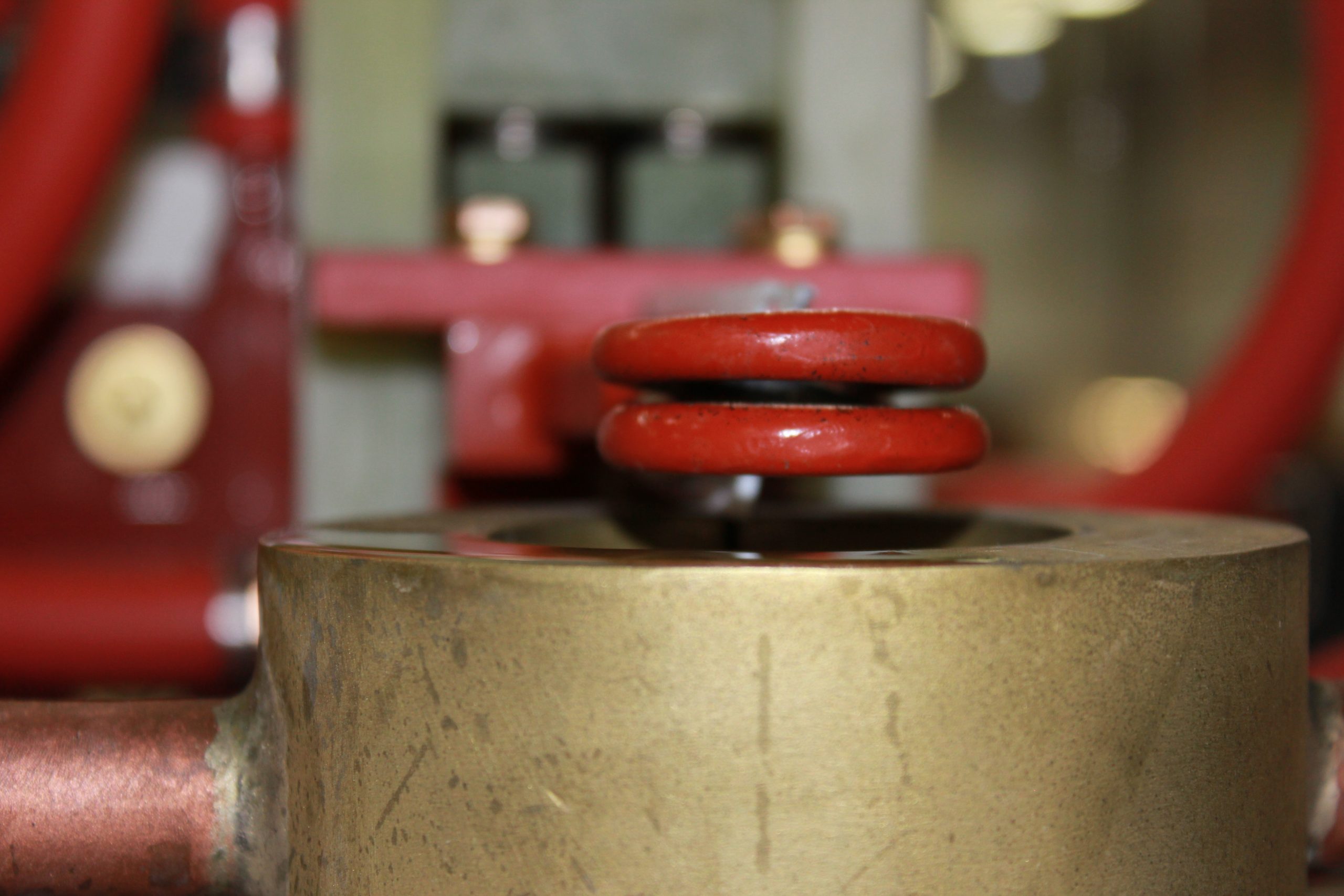

  • Quick Disconnect – Quick change tooling for coil mounting
  • Robotics and Material Handling Integration, i.e. integrated bowl feeders, rotary tables, step feeders, conveyors, or 6 axis robotic arm
  • QAS 2000 Quality Assurance System
  • Pyrometer Sensor
  • Chillers
  • Automatic/Semi-automatic part handling modules
