Digital-iQ™ Control Firmware
Radyne Digital-iQ™ is a system of embedded controls designed for easy usability in managing power limits in production environments. It continuously monitors various electrical characteristics and allows users to adjust power settings on-the-fly or through pre-defined recipes. Key features include rapid power ramping (from 0-100% in 16 microseconds), the ability to create and test recipes with minimal downtime, virtually limitless recipe storage, and remote control capabilities via PLC or Ethernet. Additionally, it includes multi-level password protection to safeguard data against unauthorized access. Overall, it provides flexibility and adaptability for efficient operation within any production ecosystem.
- User-friendly Interface: Designed for easy and efficient use.
- Advanced Communication: Facilitates seamless integration and control.
- Simple Recipe Programming: Easily create recipes and adjust settings directly from the control interface of your power supply.
- High Accuracy: Ensures precise power management.
- USB Recipe Storage: Enables convenient storage and transfer of recipes.
Overall, Digital iQ™ enhances the functionality and performance of Radyne systems in industrial applications.
Digital iQ comes standard on all Radyne VersaPower-Xtreme and TFD power supplies.
Desktop Digital-iQ Control

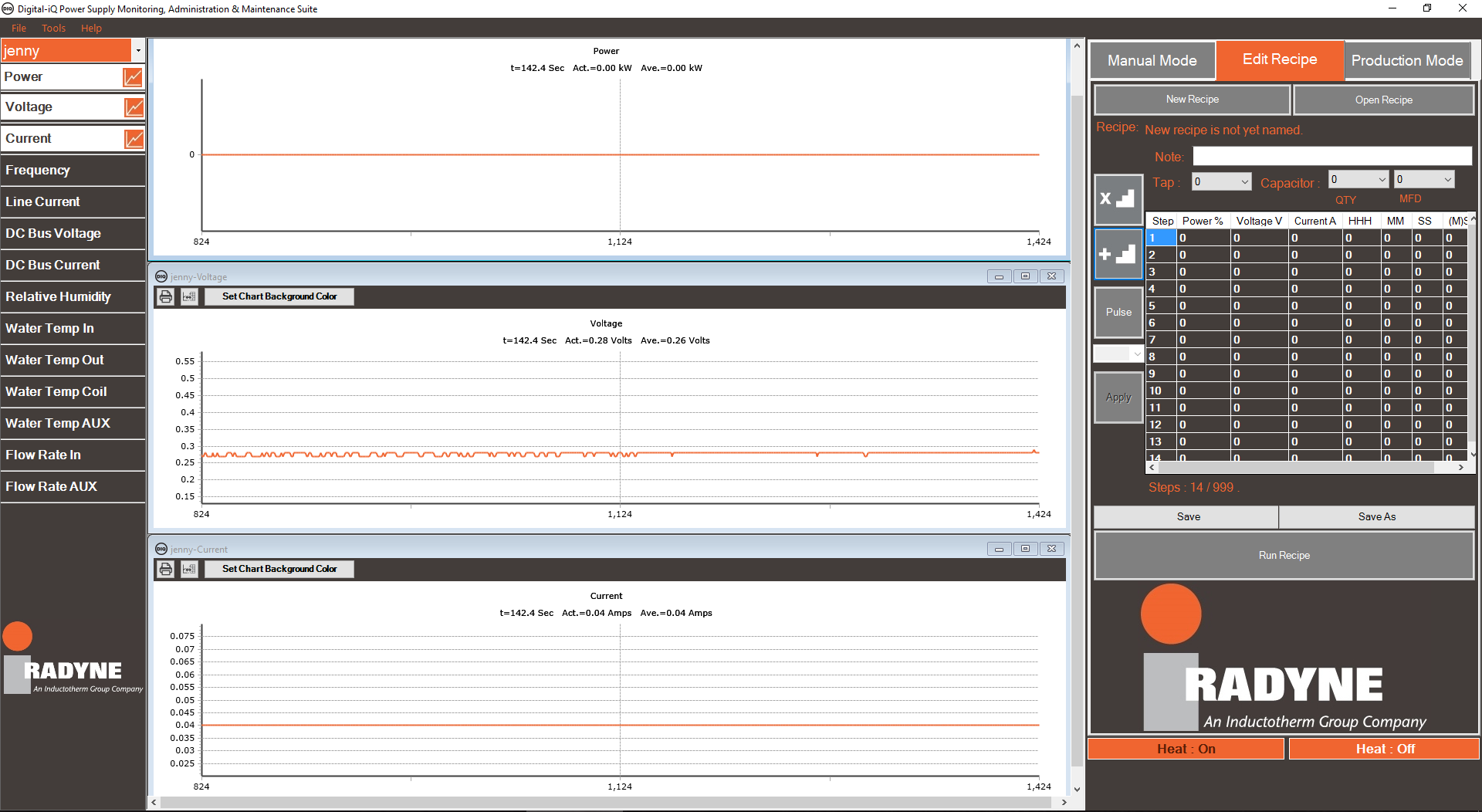

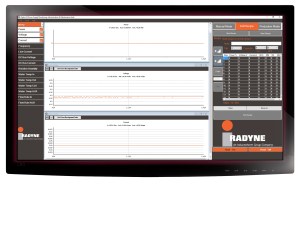

Radyne’s Digital iQ™ Desktop Software is a tool that enables users to interact with and remotely monitor Radyne power supplies. It simplifies the process of creating, saving, and managing heating recipes while allowing control of up to 10 power supplies simultaneously. Key features include:
- Quick creation, editing, saving, and deletion of recipes.
- Keyboard shortcuts for efficient recipe development.
- Customizable operator notes for clarity and documentation.
- A secure, password-protected location for storing all recipes.
- Remote starting and stopping of heating operations.

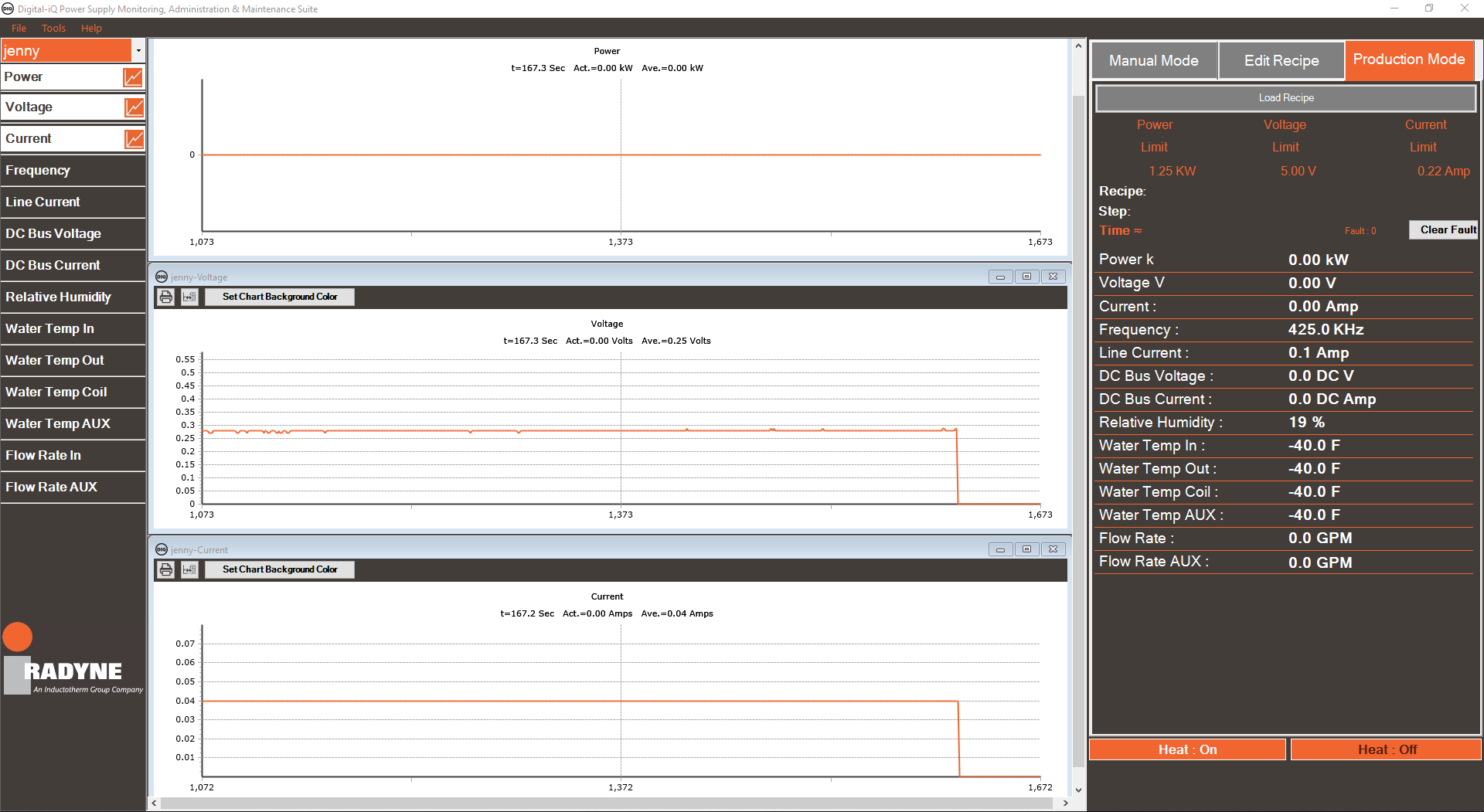

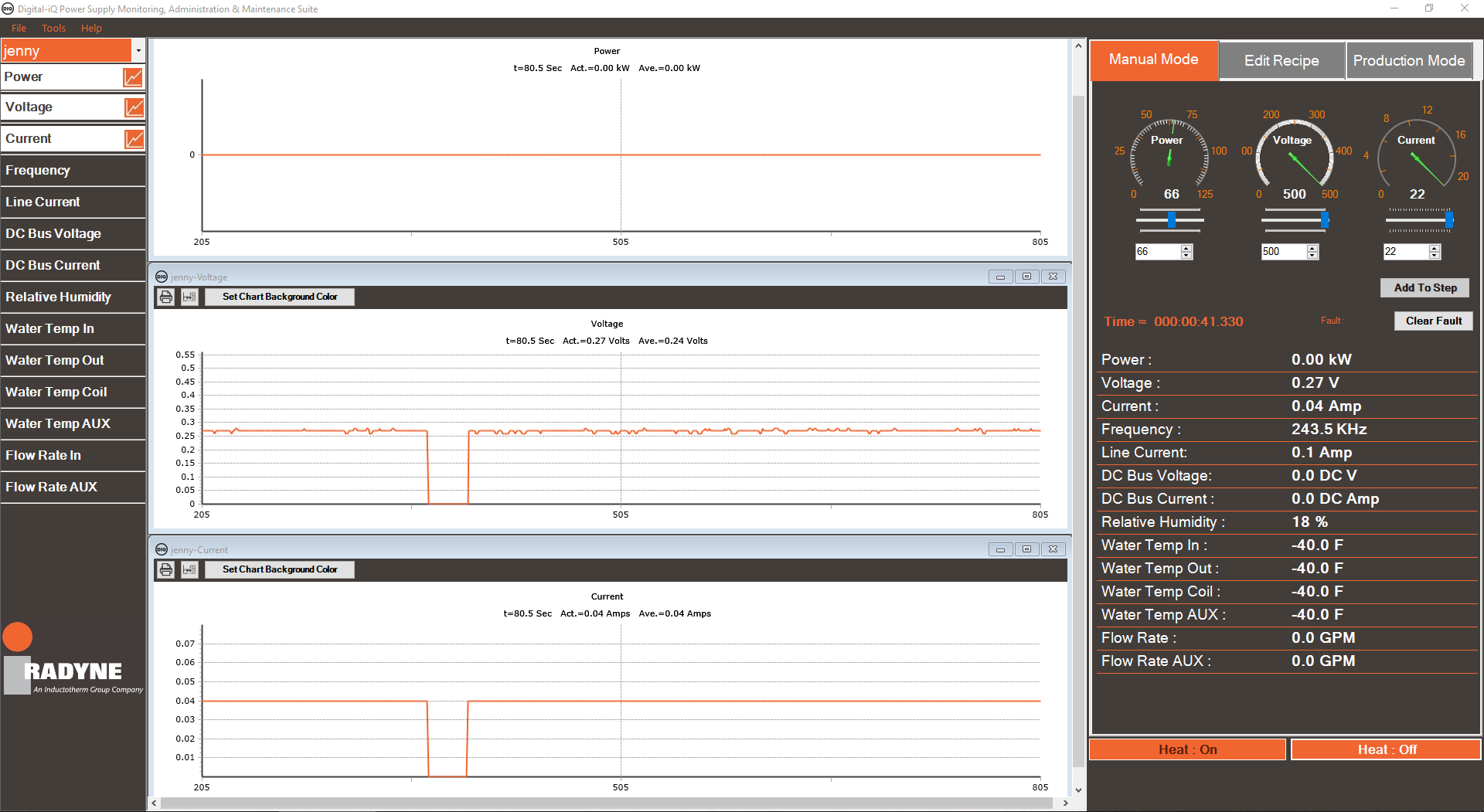

- Real-time monitoring of power supply parameters with graphical data visualization.
- Capability to save and download records to a shared database.
- Data export options to Excel or for printing.
Overall, the software enhances operational efficiency and quality assurance in managing power supply operations.
Tech Specs
| Embedded Digital iQ | Digital iQ Desktop | |
|---|---|---|
| System Requirements | Embedded in VersaPower®-Xtreme™ and TFD models | OS: Windows 7 Processor: 1 GHz Intel Memory: 256 MB RAM Hard Drive: 20 GB HD space |

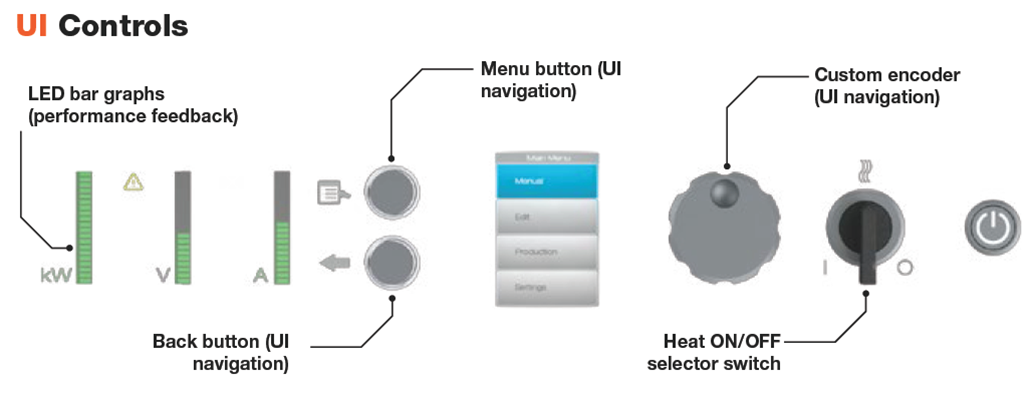

| Control | Integrated actuator, buttons, encoder, 3.25 in. screen. Remote control via PLC | Keyboard and mouse Remote control via Ethernet |
| Connectivity | Control single, embedded system only | Unlimited remote control |
| Realtime Monitoring | Power Voltage Current Frequency Line Current AC Input Current Inverter Current and Coil Voltage DC Bus Voltage DC Bus Current Water Temp In Water Temp Out Water Temp Coil Return Water Temp AUX Water Flow Rate Water Flow Rate AUX Internal Humidity Measurement Dew point Calculation | Power Voltage Current Frequency Line Current AC Input Current Inverter Current and Coil Voltage DC Bus Voltage DC Bus Current Water Temp In Water Temp Out Water Temp Coil Return Water Temp AUX Water Flow Rate Water Flow Rate AUX Internal Humidity Measurement Dew point Calculation |
