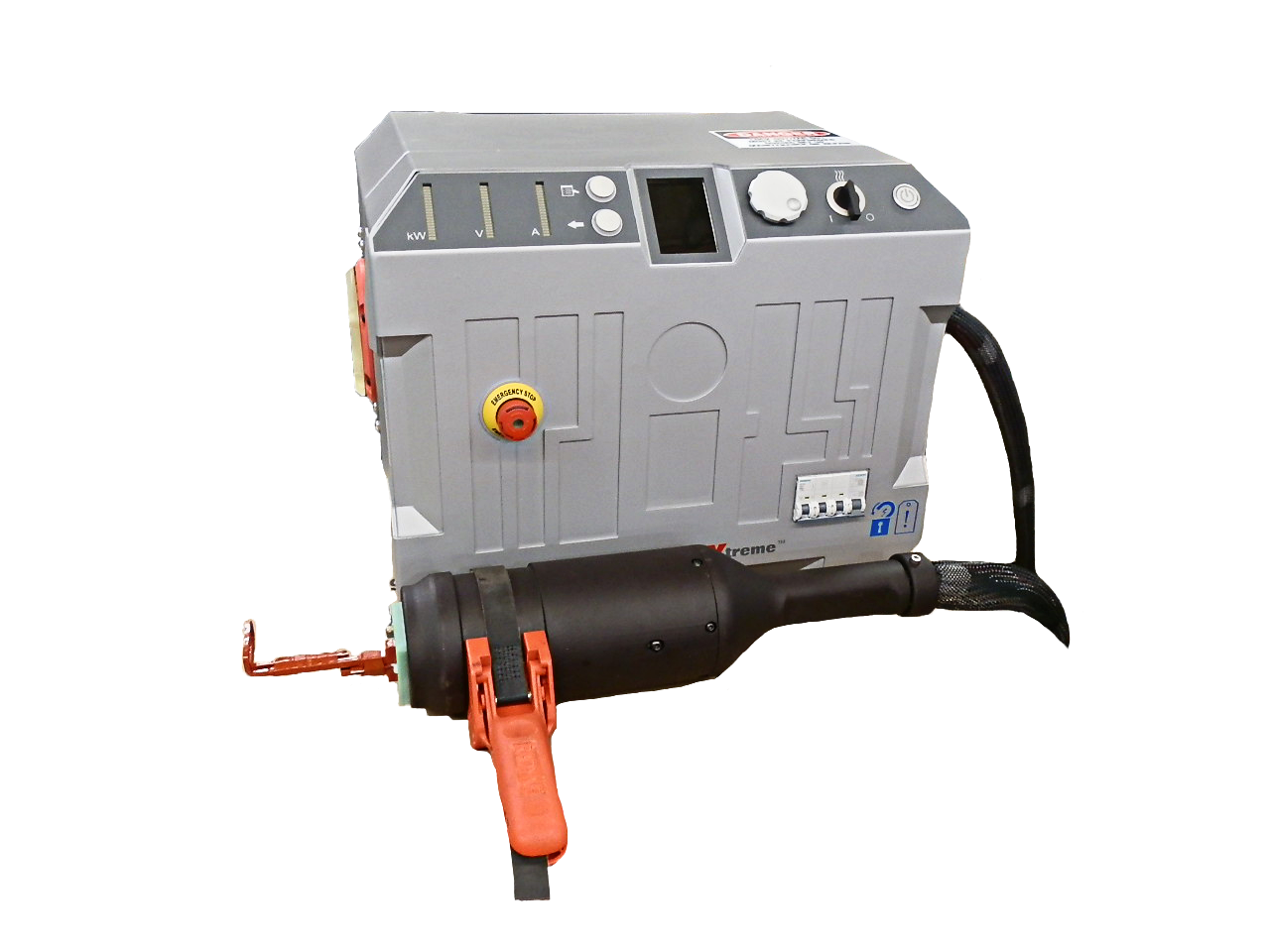

Voyager®-Mini™ Hand-Held Induction Heating System

Radyne’s innovative new Voyager®-Mini™ hand-held induction heating system is designed for use in tight spaces. For brazing, soldering, heating, drying, coating and heat shrink, the Voyager®-Mini™ moves the assembly line directly to the finished assembly (read more about Effective Ways of Joining Using Induction Heating Technology).

The power of mobility

• Provide the power of induction to “hard-to-reach” areas
• Lightweight and compact design
• Mobile or Benchtop Configurations
• Mounting Options – Fixed, Counter Balanced or Hand Held
• Safety Designed in – Complies with NFPA 79 and NEC Article 665
• Available with integrated chiller system for maximum flexibility – just add power

Control you can count on

• Repeatability with “standard” heating recipes
• Convenient integrated “trigger” for ease of use
• Can run in manual and recipe operation modes
• 0 to 100% adjustable power levels for precise results
• Easy to program recipes
• Standard or part specific coils available for multiple applications

Put out the flame

• Remove torches or open flame in the workplace
• No necessity for highly trained operators
• Great for confined space applications
• Stop inventorying, moving or paying for gas cylinders
• Eliminate need for Carbon Monoxide (CO) venting

Improve efficiency

• Put the heat only where required
• Faster, repeatable and high quality results
• Easily trained workforce – Just push a button
• No part sooting
• Use pre-programed recipes or change on the fly

Built in technology

• Designed with Radyne’s proven VersaPower® Xtreme™ Power supply
• Equipped with intuitive, high speed Digital iQ™ control platform
• Capability to store thousands of recipes
• Programmable full or ramped-up power for unbeatable accuracy
• Assure quality by real-time, monitoring of power level, and system parameters

Available add-on technology

• Radyne’s Digital iQ™ for Desktop software
• Simplified keyboard recipe creation
• Remotely connect up to 10 VersaPower® Xtreme™ power supplies
• Single password protected location for all process recipes
• Real time Monitoring and tracking of parameters
• Logging, exporting and printing of data for product traceability

Voyager Mini™ Portable Hand-Held Induction Heating Mobile package includes

• Voyager®-Mini™ – Handheld Transformer
• VersaPower® Xtreme™ Power Supply
• Closed loop Cooling System
• Assist Lift and Swing Arm
• Power and Water Cables
• Manuals
• Optional Induction Coils
